Lab-scale Reactors
In addition to the main pyrolysis plant, lab-scale pyrolysis units are used at ITC to better understand the influences and mechanisms during pyrolysis. This forms the basis for further technological development. Additionally, liquid pyrolysis products can be separated into different fractions using the vacuum distillation unit, which can then be analyzed and further processed.
Stirred Tank Reactor
- Pyrolysis of polymers and plastic waste
- Experiments in batch and continuous operation for generation of pyrolysis products
- Mass and energy balance derivable
- Temperature-staged pyrolysis possible
- Well-defined reactor conditions regarding feedstock homogeneity and process parameters
- Capacity of 250 g Feedstock
- Temperature < 600 °C

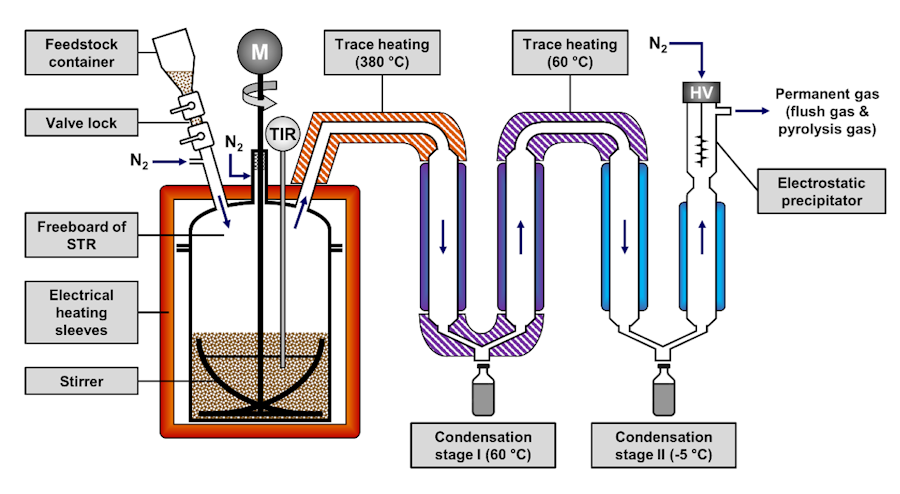

Illustration of the pyrolysis plant with stirred tank reactor
