| Technical data | |
|---|---|
| Pressure | atmospheric |
| Reactor length | 3,0 m |
| Reactor diameter | 0,28 m |
| Residence time | 5 s |
| Max. gas temperature | 1600 °C |
| Elektrical wall heating, Pth Max. wall temperature |
60 kW 1200 °C |
| Fuel mass flow rate | 3 – 20 kg/h |
| Gasification temperature | O2 / N2 / steam (yO2,max = 80 vol%) |
| Liquid and suspension fuels (biogenic, anthropogenic) | Single component reference fuels Reference suspensions Technical fuels |
| Analytics: Gas phase composition Gas temperature local Droplet velocity / size Reaction zones, turbulent structures |
Standard analytics ABB, µGC Double bead thermo-couples PDA / LDA OH-LIF, Tracer-LIF |

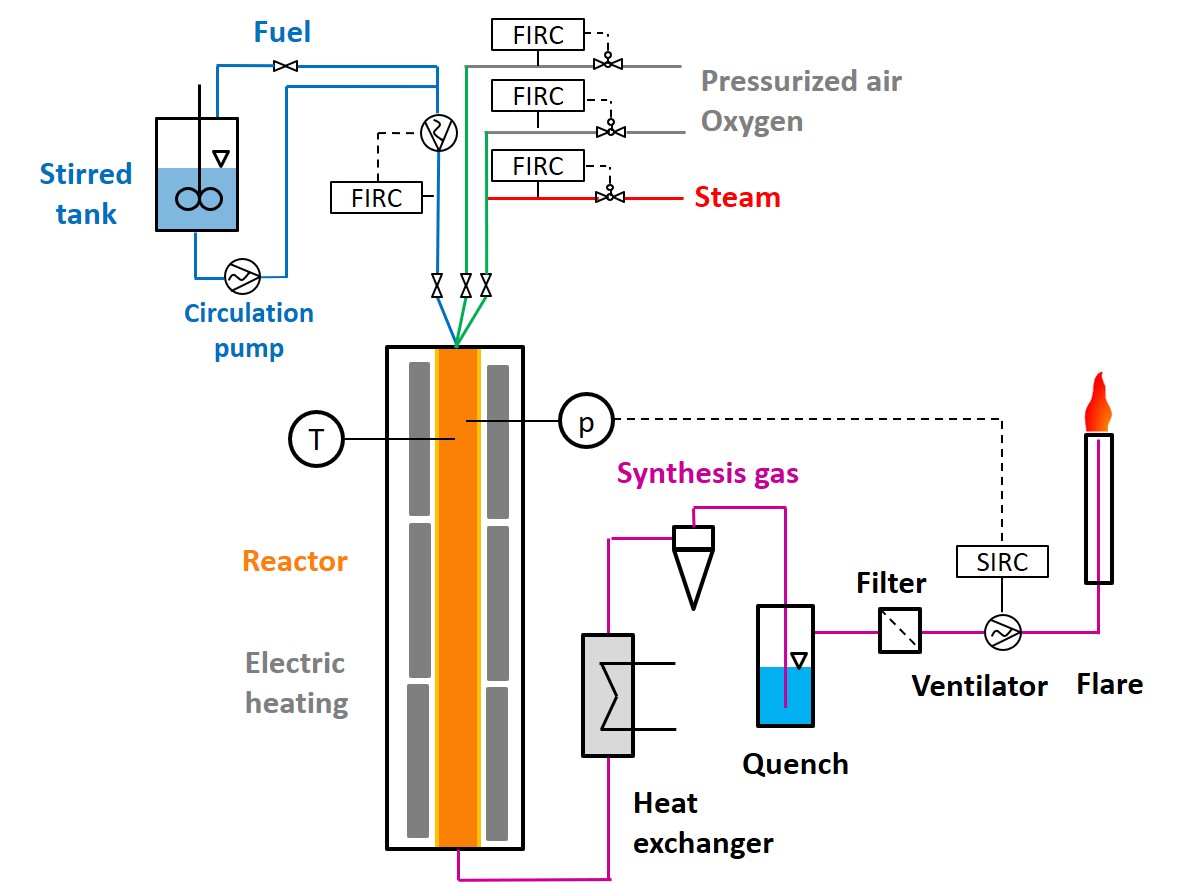

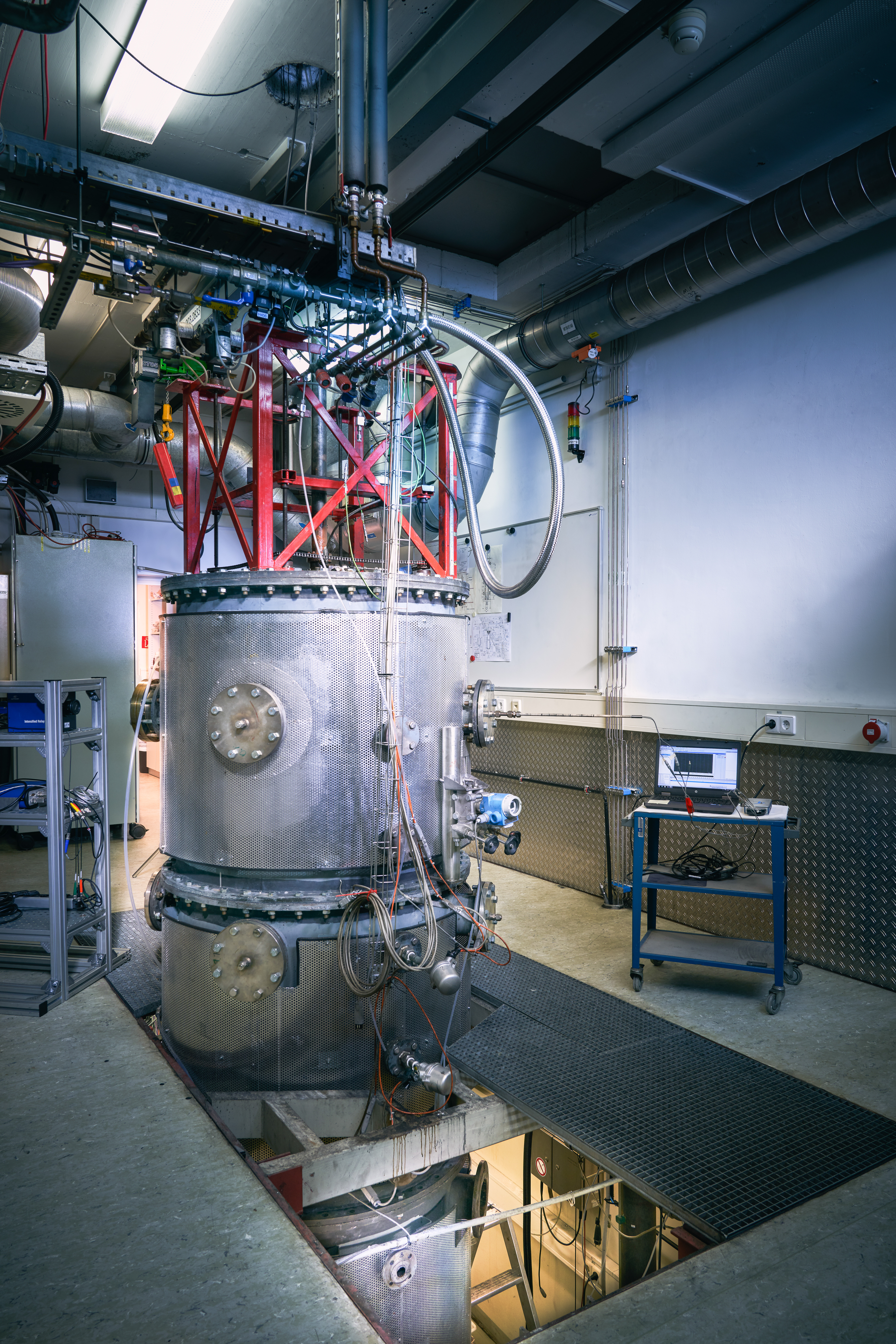

Research at the atmospheric Research Entrained flow Gasifier REGA focusses on the gasification behavior of biogenic and anthropogenic liquid and suspension fuels. The axially movable burner construction enables radial profile measurements of temperature and gas phase composition at variable burner distances. Applying laser-optical diagnostics allows for the determination of local distributions of droplet sizes and velocities, as well as the characterization of reaction zones. The experimental data serve as basis for modelling the thermo-chemical processes under entrained flow conditions and for validation of numerical models simulating the gasification process.
